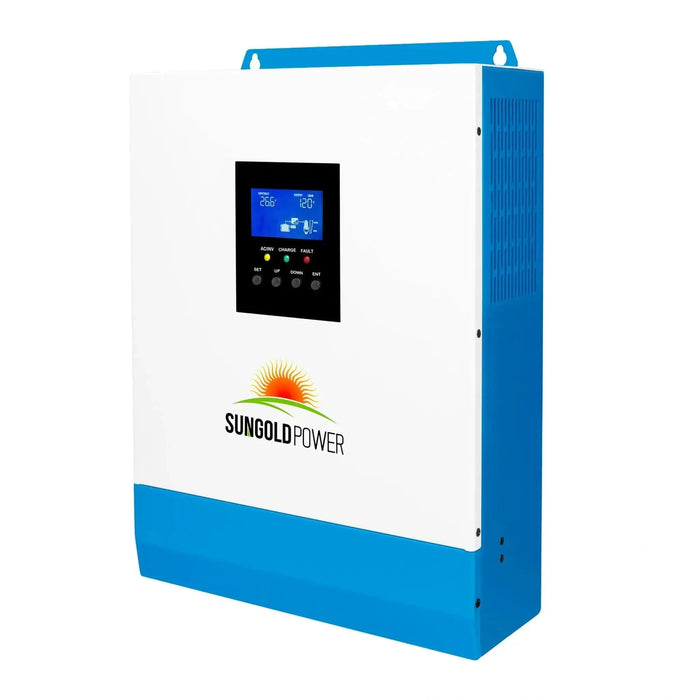

SunGoldPower | 5000W 48V Solar Charger Inverter
Overview
-
All-in-one solar hybrid inverter: This 5000 Watt Pure Sine Wave Inverter features a maximum 100A battery charging capacity (SOLAR + AC) and supports a maximum 5500W, 500V PV array. It combines the benefits of both grid-tied and off-grid systems and is UL1741 Listed by ETL.
-
Parallel Kit: Connect up to 6 units for a total output of 30kW. Achieve 120V single-phase, 120V/240V split-phase (with more than 2 units), and 208V three-phase support (with more than 3 units), enhancing inverter power and surge capacity.
-
Stable AC output: This 5000 Watt inverter delivers pure sine wave 110V AC output, with a motor capacity of 4HP and overload protection. It can power a variety of household and office appliances, including refrigerators, computers, televisions, ovens, and air conditioners.
-
Charging and output modes: Offers four charging modes—AC Priority, Solar Priority, Only Solar, and Mains & Solar hybrid charging. It also features four output modes: PV Priority, Utility Priority, Inverter Priority, and Hybrid output to suit your diverse needs.
-
Battery compatibility: Compatible with 48V AGM/Sealed, Gel, Flooded, and Lithium batteries, plus a User Mode for custom inputs to accommodate virtually all battery types. Battery charging voltage range is 40–60V, with an RS485 port for BMS communication.
Specifications
| MODEL | 5000W 48V |
|---|---|
| AC Mode: | |
| Rated Input Voltage | 110/120Vac |
| Input Voltage Range | (90Vac-140Vac) |
| Frequency | 50Hz/ 60Hz (auto-sensing) |
| Overload/short-circuit protection | Breaker |
| Breaker | >95% |
| AC reverse flowing protection | Yes |
| Maximum bypass overload current | 63A |
| Inverting Mode: | |
| Output voltage waveform | Pure sine wave |
| Rated output power (W) | 5000 |
| Rated output voltage (Vac) | 120Vac (100/105/110Vac Settable) |
| Efficiency | >90% |
| Overload protection | (102%<load<110%) ±10%:reporting error and turn off the output after 5 minutes; (102%<load<110%) ±10%:reporting error and turn off the output after 10 seconds Load>125%± 10%: reporting error and turn off the output after 5 seconds; |
| Peak power | 10000VA |
| Loaded motor capacity | 4HP |
| Output short-circuit protection Breaker | Breaker |
| Specification of bypass breaker | 63A |
| Rated battery input voltage | 48V (minimum start voltage 44V) |
| Battery voltage range | 40.0Vdc~60Vdc ± 0.6Vdc |
| Power saving mode | idle consumption is 20~25W |
| Power saving off mode | Idle consumption is 45~50W |
| AC Charger: | |
| Battery type | Lead acid or lithium battery |
| Maximum charge current | 40A |
| Charge voltage range | 40-60Vdc |
| Short-circuit protection | Breaker and blown fuse |
| Breaker specification | 63A |
| Overcharge protection | Turn off charge after 1min alarm |
| Solar Charger: | |
| Maximum PV open-circuit voltage | 500Vdc |
| PV operation voltage range | 120-500Vdc |
| MPPT voltage range | 120-450Vdc |
| Maximum output power | 5000W |
| Charge current range of solar energy (settable) | 0-80A |
| Charge short-circuit protection | Blown fuse |
| Wiring protection | Inverse wiring protection |
| Authentication specification: | |
| Operation temperature range | -15 ℃ to 55℃ |
| Storage temperature range | -25 ℃ ~ 60℃ |
| Noise | 60dB |
| Thermal dissipation | Forced cooling with adjustable air speed |
| Communication interface | USB/RS4852 (Wifi/GPRS)/dry node control |
| Dimension (L*W*D) IN | 17.32*12.60*4.96 |
| Weight (LB) | 25.57 |
Manuals and Downloads
Download 5000w Solar Inverter User's Manual
Warranty
2 Year Warranty
