SunGoldPower | OFF GRID SOLAR KIT 12 X 550 WATTS SOLAR PANELS 25.6KWH LITHIUM BATTERY 10KW SOLAR INVERTER 48VDC 120V/240V SELF-HEATING SGR-10K25T
SGR-10K25T 10kW Off-Grid Solar Kit 48V 25.6kWh LiFePO4 Battery with 12×550W Panels Self-Heating
The SGR-10K25T 10kW off-grid solar kit is a powerful all-in-one solution for energy independence. Equipped with a 25.6kWh LiFePO4 battery and 12 high-output 550W solar panels, it delivers reliable power for residential and remote applications. Its 48V system with 120V/240V output ensures efficient performance, while the self-heating battery enables dependable operation in cold environments.
KEY FEATURES
- Complete 10kW off-grid solar system for whole-home power needs
- 25.6kWh LiFePO4 battery with self-heating for cold climates
- Includes 12 high-efficiency 550W solar panels
- 48V system for optimized performance and energy efficiency
- 120V/240V split-phase output for residential applications
- Ideal for off-grid living, backup power, and remote installations
- 1 × 10000W 48Vdc 120/240Vac Inverter (up to 6 units parallel)
- 12 × 550 Watt Monocrystalline Solar Panels
- 2 Sets × 50 Feet Solar Extension Cables – Inverter PV input
- 12 Sets × Mounting Z‑Brackets
- 1 × 200A DC Breaker
- 2 × 25A PV Breaker

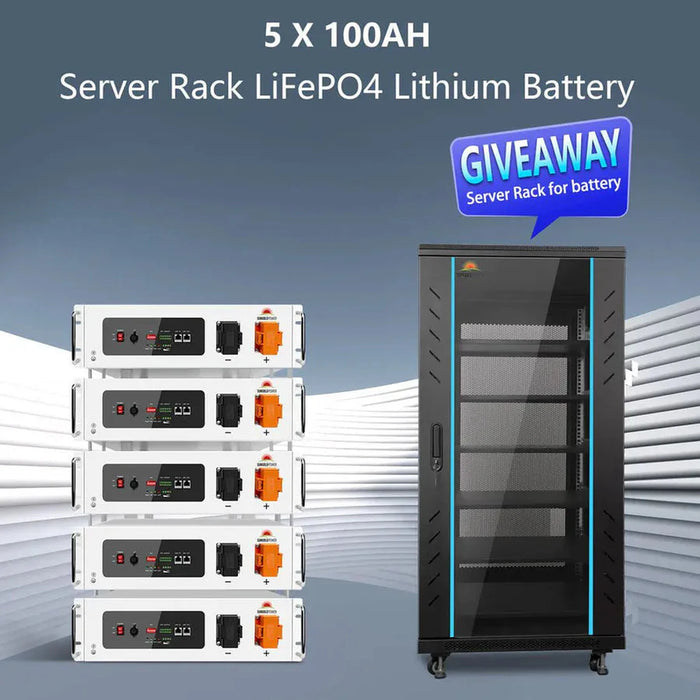

- 5 × 100Ah 51.2V LiFePO4 Battery SG48100P + 1 × Enclosed Battery Cabinet
- or
- 5 × 100Ah 51.2V LiFePO4 Battery Self‑Heating SGH48100T + 1 × Enclosed Battery Cabinet
- or
- 2 × 200Ah 51.2V LiFePO4 Battery SG48200T
- or
- 2 × PowerMax 51.2V 314Ah Outdoor Energy Storage Battery + 1 × Battery Parallel
Specifications
| 10000 Watt Solar Inverter | AC Output | 10000W |
| Output Waveform | Pure Sine Wave | |
| Output Voltage | 120/240V (Split Phase / Single Phase) | |
| MPPT Operating Voltage Range | 125 – 425 Vdc | |
| Efficiency | 92% | |
| Max Charging Current | 200A | |
| Maximum PV Array Power | 11,000W | |
| Dimension | 26 × 17.9 × 5.1 inches | |
| Weight | 54 lbs | |
| Certificates | UL1741 Listed by ETL | |
| SG48100P LiFePO4 Battery | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah | |
| Energy | 5.12kWh | |
| Charge Cut-off Current | 5A | |
| Max Continuous Charge Current | 100A | |
| Discharge Cut-off Voltage | 43.2V | |
| Cycle Life | ≥7000 cycles | |
| Communication Protocol | RS232 / RS485 / CAN | |
| Storage Temperature | 14°F ~ 113°F | |
| Dimension | 19.3 × 18.9 × 5.5 inches | |
| Weight | 93 lbs | |
| Certificates | UL1973, CE, UN38.3 | |

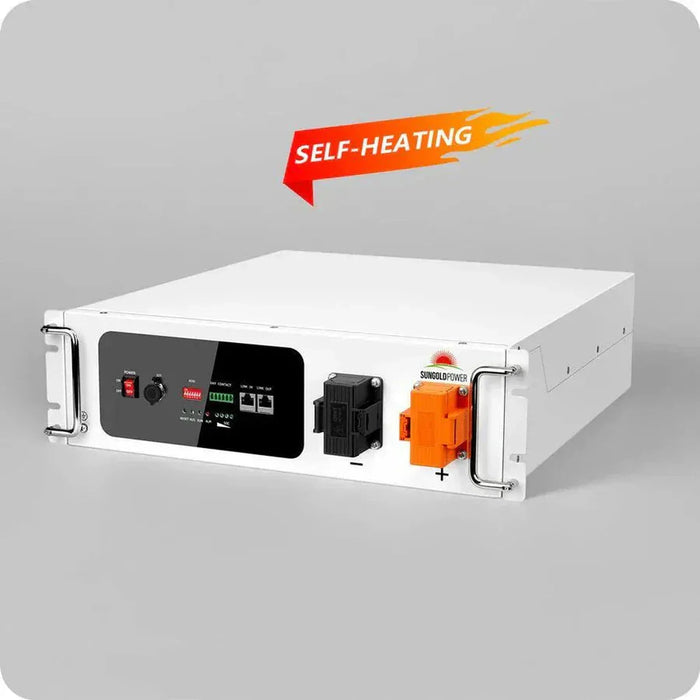

| SGH48100T Self-Heating LiFePO4 Battery | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah | |
| Energy | 5.12kWh | |
| Standard Charge/Discharge Current | ≤50A | |
| Feature | Self-Heating | |
| Max Continuous Charge Current | 100A | |
| Communication Protocol | RS485 / CAN | |
| Storage Temperature | 14°F to 113°F (-10°C to 45°C) | |
| Operating Temperature | Charge: 14°F to 122°F; Discharge: -4°F to 122°F | |
| Dimension | 19.3 × 17.3 × 5.2 inches | |
| Weight | 101 lbs | |
| SG48200T LiFePO4 Battery | Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah | |
| Energy | 10.24kWh | |
| Standard Charge/Discharge Current | 100A | |
| Maximum Charge Current | 140A | |
| Charge Cut-off Voltage | 57.6V | |
| Discharge Cut-off Voltage | 44.8V | |
| Cycle Life | 5000 cycles | |
| Communication | RS485 / CAN | |
| Storage Temperature | 14°F to 122°F | |
| Warranty | 10 Years | |
| PowerMax 314 Outdoor LiFePO4 Battery | Nominal Voltage | 51.2V |
| Nominal Capacity | 314Ah | |
| Energy | 16.07kWh | |
| Standard Charge/Discharge Current | 150A | |
| Max Continuous Charge Current | 190A | |
| Discharge Cut-off Voltage | 44.8V | |
| Charge Cut-off Voltage | 57.6V | |
| Cycle Life | 8000 cycles | |
| Communication | RS485 / CAN | |
| Storage Temperature | 14°F to 131°F | |
| Certificates | UL1973, UL9540A | |
| 550W Mono Solar Panel | Peak Power | 550W |
| Solar Cell | Monocrystalline | |
| Product Tolerance | ±3% | |
| Maximum Power Current (Imp) | 13.45A | |
| Maximum Power Voltage (Vmp) | 41.00V | |
| Short Circuit Current (Isc) | 14.03A | |
| Open Circuit Voltage (Voc) | 49.70V | |
| Product Dimension | 89.7 × 44.8 × 1.4 inches | |
| Product Weight | 62.4 lbs | |
| Material & Workmanship Warranty | 12 Years | |
| Certificates | UL61730, CEC Listed |
Manual and Downloads
- 10000W Solar Inverter
- SG48100P LifePo4 5.12KWH Lithium Battery
- SGH48100T LifePo4 5.12KWH Lithium Battery
- SG48200T LifePo4 10.24KWH Lithium Battery
- PowerMax 51.2V 314AH Outdoor Energy Storage Battery
- 550 Watts Solar Panels
- The wiring diagram of SGR-10K25S-240V
- The wiring diagram of SGR-10K25T
Warranty
- 10000 Watt Solar Inverter - 3 Year Warranty
- SG48100P LiFePO4 Battery- 10 Year Warranty
- SGH48100T Self-Heating LiFePO4 Battery- 10 Year Warranty
- SG48200T LiFePO4 Battery - 10 Year Warranty
- PowerMax 314 Outdoor LiFePO4 Battery - 10 Year Warranty
- 550 Mono Solar Panels - 25 Year Warranty
