Victron Energy | MultiPlus Compact 24/2000/80-50 120V Pure Sine Wave Inverter/Charger
Overview

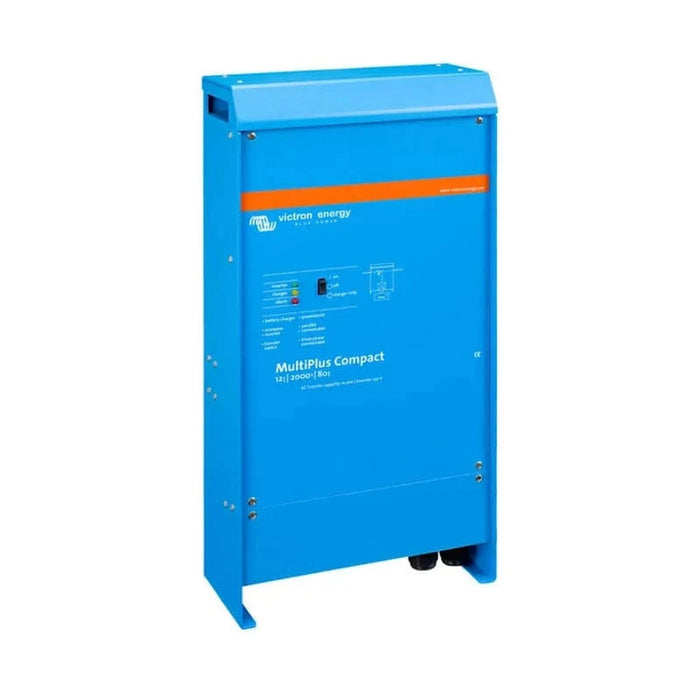

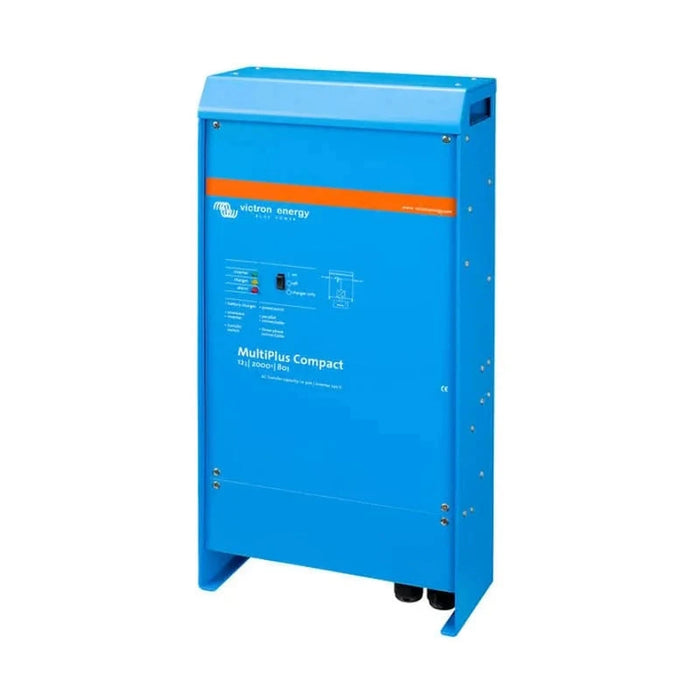

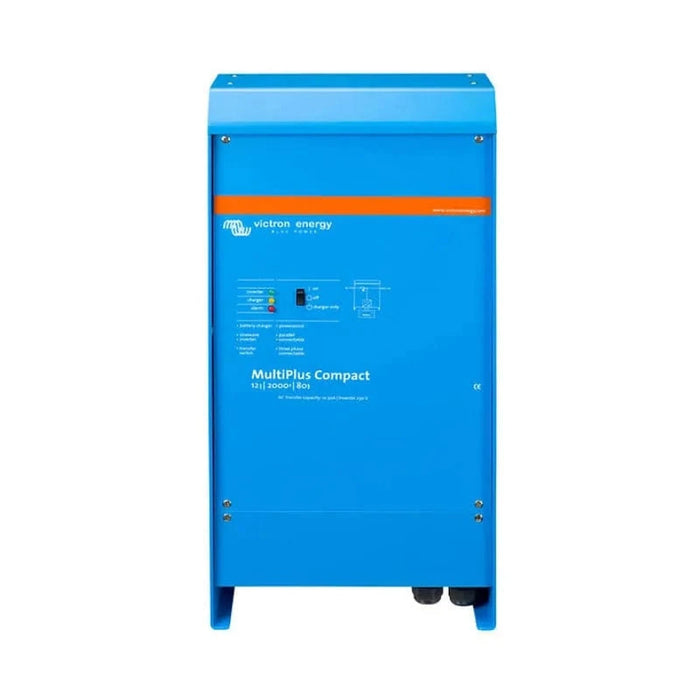

The Victron Energy MultiPlus C 24/2000/80-50 120V (UL 458) is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
The Victron Energy MultiPlus C 12/2000/80-50 120V (UL 458) is a compact and powerful true sine wave inverter, a sophisticated battery charger with adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features.
Unique PowerAssist Feature: The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Uninterrupted AC Power (UPS Function): In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Virtually Unlimited Power Thanks to Parallel Operation: Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
Remote Monitoring & Control: When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more.
Specification
MultiPlus Inverter/Charger Specifications
MultiPlus 12/2000/80-50 (120V)
| Spec | Value |
|---|---|
| PowerControl / PowerAssist | Yes |
| Transfer switch (A) | 50 |
| Minimum PowerAssist current (A) | 8.5 |
| Input voltage range (V DC) | 9.5 – 17 |
| Output voltage | 120 VAC ± 2% |
| Frequency | 60 Hz ± 0.1% |
| Cont. output power at 25°C | 1600 W / 2000 VA |
| Cont. output power at 40°C | 1450 W |
| Peak power | 4000 W |
| Max efficiency | 92% |
| Zero-load power | 9 W (3 W in search mode) |
| Input voltage range (AC) | 95-140 VAC |
| Input frequency | 45 – 65 Hz |
| Power factor | 1 |
| Charge voltage absorption / float / storage | 14.4 / 13.8 / 13.2 V |
| Charge current house/starter battery (A) | 80 / 4 |
| Battery temperature sensor | Yes |
| Programmable relay | Yes |
| Protection | a - g |
| Operating temp. range | -40 - +40°C (fan assisted cooling) |
| Humidity | max 95% (non condensing) |
| Material & Colour | Aluminium (blue RAL 5012) |
| Protection category | IP20 |
| Battery-connection | Bolts M8 |
| AC-connection | Screw-terminals 6 AWG (13mm²) |
| Weight | 25 lbs (13 kg) |
| Dimensions (in) | 20.5 x 10.0 x 5.0 |
| Standards | EN 60335-1, EN 60335-2-29, UL 458 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-3-3 |
MultiPlus 24/2000/50-50 (120V)
| Spec | Value |
|---|---|
| PowerControl / PowerAssist | Yes |
| Transfer switch (A) | 50 |
| Minimum PowerAssist current (A) | 8.0 |
| Input voltage range (V DC) | 19 – 33 |
| Output voltage | 120 VAC ± 2% |
| Frequency | 60 Hz ± 0.1% |
| Cont. output power at 25°C | 1600 W / 2000 VA |
| Cont. output power at 40°C | 1450 W |
| Peak power | 4000 W |
| Max efficiency | 94% |
| Zero-load power | 11 W (4 W in search mode) |
| Input voltage range (AC) | 95-140 VAC |
| Input frequency | 45 – 65 Hz |
| Power factor | 1 |
| Charge voltage absorption / float / storage | 28.8 / 27.6 / 26.4 V |
| Charge current house/starter battery (A) | 50 / 4 |
| Battery temperature sensor | Yes |
| Programmable relay | Yes |
| Protection | a - g |
| Operating temp. range | -40 - +40°C (fan assisted cooling) |
| Humidity | max 95% (non condensing) |
| Material & Colour | Aluminium (blue RAL 5012) |
| Protection category | IP20 |
| Battery-connection | Bolts M8 |
| AC-connection | Screw-terminals 6 AWG (13mm²) |
| Weight | 25 lbs (13 kg) |
| Dimensions (in) | 20.5 x 10.0 x 5.0 |
| Standards | EN 60335-1, EN 60335-2-29, UL 458 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-3-3 |
