Sol-Ark | 8K-2P (120/240V) 48V All-In-One Hybrid Inverter | 5 year warranty

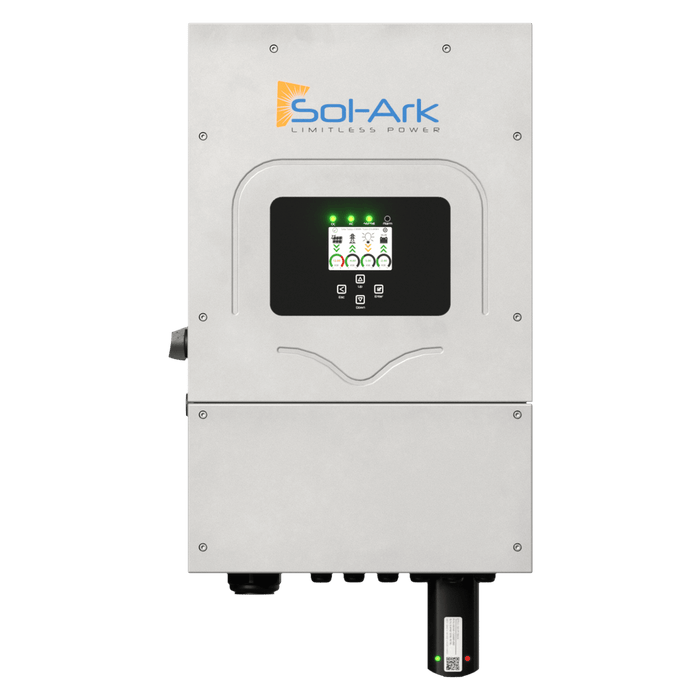

Sol-Ark 8K 120/240V 48V All-in-One Hybrid Inverter with 5-Year Standard Warranty
The Sol-Ark 8K stands as a versatile power solution, operating in split-phase mode to power both 120V and 240V appliances simultaneously, mirroring standard grid electricity. It efficiently manages power from various sources, such as solar, batteries, grid, loads, and generators, making it suitable for grid-tied, hybrid, or off-grid installations. Its expandable design allows integration of up to 36 solar panels and 32 batteries. The system comes with a standard 5-year warranty, extendable to 10 years for added peace of mind.

Features

Rapid 4ms Battery BackupPV Capacity: Can be Expanded from 1.5KW to 11KWBattery Configurations: Optional, Ranging from 12KWh to 48KWhReturn on Investment: Estimated at around 7.5 yearsSmart Load Management: Smooth Grid InterchangeDurability: Solar Panels Designed for a Lifespan of 50 yearsEnvironmentally Friendly: Sol-Ark Solar Generator Made with Recyclable MaterialsBatteries: Economical and Endlessly Recyclable



What Comes Inside Your Package

• Manual
• WiFi Plug with screws
• Battery Resistors-2
• Limiter Sensors (sm)-2
• Manual
• Toroid
• Allen Key
• Mounting Bracket
• Battery Temp Sensor

Overview of Sol-Ark 8K All In One Inverter:

• Manufacturer: Sol-Ark
• Model: 8K-2P-N
• Other Vendor Codes: Sol-Ark-8K-48-ST
• Rated Power Output: 8000 Watts
• Dimensions: 30.0 inches (Length) x 18.3 inches (Width) x 10.0 inches (Depth)
• Weight: 78 pounds
• Warranty: 5 years
• All-in-One Design: Simplifies installation by eliminating the need for additional components
• 63A Feedthrough for Critical Loads: Ensures uninterrupted power to essential appliances
• Parallel Stacking Capability: Allows for the expansion of system capacity with additional units
• NEMA 3R Outdoor Rating: Provides durability in extreme weather conditions
• Closed-Loop LiFePO4 Compatibility: Optimizes integration with advanced lithium battery technologies
• AC/DC Solar Flexibility: Compatible with both AC and DC solar installations for flexible installation options
• Built-in Rapid Shutdown: Offers compliant safety features for quick system deactivation
• Remote Monitoring: Enables system management and monitoring from remote locations
• UL Certification for California: Meets strict safety and performance criteria for California installations

Solar Characteristics

• Max allowed PV Power: 11000W
• Max PV Power Delivered to Battery & AC Outputs: 8000W
• Max DC voltage: 500V @ 18A, 450V @ 20A
• MPPT voltage range: 150-425V
• Starting voltage: 125V
• Number of MPPT: 2
• Solar Strings per MPPT: 2
• Max DC current per MPPT: 20A (self limiting)
• Max AC Coupled Input (Micro/String Inverters): 9,600W

AC Output Characteristics

• Connections: 120/240/208V split phase
• Continuous AC power to Grid (On-Grid): 8000W 33.3A L-L (240V)
• Continuous AC power to Load (Off-Grid): 8000W 33.3A L-L (240V)
• Surge AC power 10sec: 16,000VA L-L (240V)
• Surge AC power 100ms: 25,000VA L-L (240V)
• Parallel Stacking: No
• Frequency: 60/50Hz
• Continuous AC power with Grid or Generator: 15120W 63A L-L (240V), 7,560W 63A L-N (120V)
• CEC Efficiency: 96.5% (Peak 97.5%)
• Idle Consumption typical – no load: 60W
• Sell back power modes: Limited to Household or Fully Grid-Tied
• Design (DC to AC): Transformerless DC
• Response Time (Grid-Tied to Off-Grid): 4ms
• Power Factor: +/-0.9 - 1.0

Battery (optional) Characteristics

• Type: Lead-Acid or Li-Ion
• Nominal DC Input: 48V
• Capacity: 50 – 9900Ah
• Voltage Range: 43.0 – 63.0V
• Continuous Battery charging output: 185A
• Charging curve: 3-stage w/ equalization
• Grid to Battery Charging Efficiency: 96.0%
• External temperature sensor: included
• Current shunt for accurate % SOC: integrated
• External Generator Start based on voltage or % SOC: integrated
• Communication to Lithium battery: CanBus & RS485

General Characteristics

• NEMA-3R rated
• Ambient Temperature (4 variable speed fans): -25 to 55C, >45C
• Installation Style: Wall-Mounted
• Wi-Fi & LAN Communication: included
• Standard Warranty: 5 years
• Optional Extended Warranty: 10 years

Easy To Setup:

The 8K Inverter includes all required components for installation, conveniently packaged for enhanced efficiency.

Remote Management/Access:

Sol-Ark's app and remote access allow for swift system repairs or modifications, even when you're not on location.

AC/DC Coupling

Enables concurrent DC and AC coupling, optimizing PV energy without the need to expand the PV array and cutting costs for storage inverters.

Warranty and Reliability

Features a top-tier, robust warranty and provides access to live engineering support seven days a week for all your requirements.
